Aeromotive GM LS3/L76 Fuel Rails
SKU 14115
MPN aer14115
$393.66 · Available to order

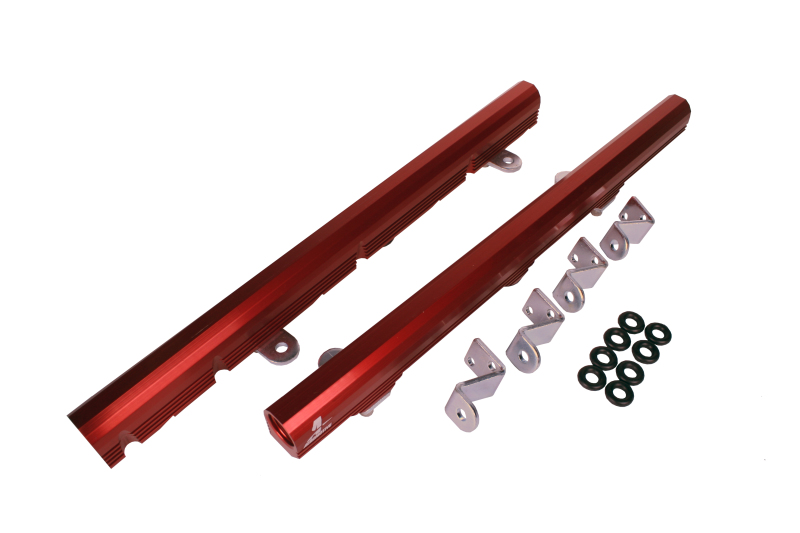

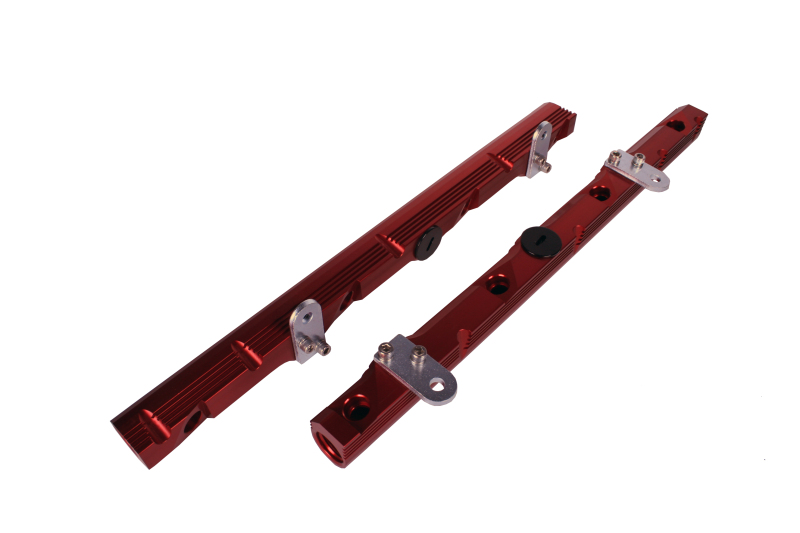

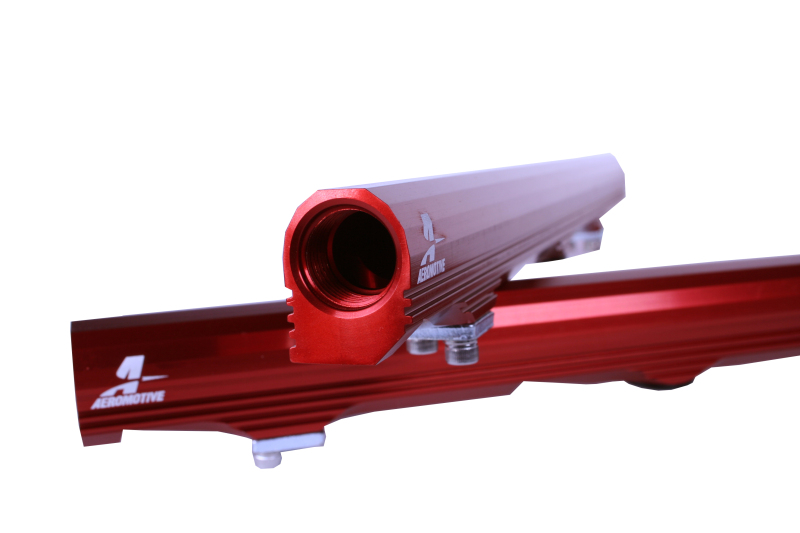

Aeromotive GM LS3/L76 Fuel Rails
Aeromotive High Flow, Billet Fuel Rails combine 3,000 HP flow capabilities with ?bolt-on? ease of installation. Fits GM LS3/L76?? Rails Only. ORB-08 Ports with compact connections and positive, leak-free sealing. Full 5/8' ID through bore, capable of supporting up to 3,000 HP. Fully compatible with -10 AN line if combined with custom ORB-08/AN-10 adapter P/N 15641. Full size ports at each end for optimal injector supply and minimal hydraulic fluctuation. Additional inlet/outlet ports are provided where required for plumbing convenience. CNC-machined, billet aluminum construction for unequaled fit and finish. Steel mounting brackets, custom engineered for each application, combining a solid, durable mounting platform with correct fit and ?bolt-on? ease of installation. Red, Type II bright dip anodized finish that looks great and protects against corrosion.
| Category | Fuel Delivery |
|---|---|
| Sub-Category | Fuel Rails |
| UPC | 684980003147 |
| CARB Approved | No |
| Prop 65 Warning | Y |
| Special Order | Yes |
| Weight | 3.4 lb |
| Dimensions (L×W×H) | 8.5 × 3.6 × 3.5 in |
